The Microfilm Shop has a full range of Diazo and Silver Microfilm products including our very own Ozpahan range of Diazo including our patented M Black Diazo and the full Fujifilm range of silver microfilm products – for which Genus – The Microfilm Shop are the master European, African and Middle East distributor.
February 2013 – Fujifilm Europe announces that Genus – The Microfilm Shop is appointed the exclusive master distributor for the complete Fujifilm range of silver microfilms for the Europe, Middle East and Africa regions.
Products include:
| Silver Orignal Microfilms | Description |
|---|---|
| HR21 | 16mm x 30.5m Super |
| PT21 | 16mm x 30.5m HRII High Contrast |
| HR23 | 16mm x 40m Super |
| HR38 | 16mm x 65.5m Super |
| HR20 | 35mm x 30.5m Super |
| PT20 | 35mm x 30.5m HRII High Contrast |
| HR19 | 35mm x 40m Super |
| HR37 | 35mm x 65.5m Super |
| HR22 | 35mm x 305m Super |
| HR13 | 105mm x 148mm Cut Fiche HRII High Contrast |
| Archive Microfilm | |
|---|---|
| FM-33 | 16mm x 30.5m Archive Film |
| FM-66 | 16mm x 66m Archive Film |
| DIRECT DUPLICATING FILM | |
|---|---|
| DDD-11 | 16mm x 310m Direct Dupe |
| DDD-31 | 35mm x 310m Direct Dupe |
| DDD-33 | 35mm x 762.5m Direct Dupe |
| Positive Duplicating Film | |
|---|---|
| DMP-16 | 16mm x 305m Miniposi Film |
| DMP-35 | 35mm x 305m Miniposi Film |
Ask us for samples, prices and packages.
See Fujifilm web site.
Read English Announcement here.
Genus FUJIFILM DIRECT DUPLICATING FILM PET-63、PET-100
Genus FUJIFILM MINIPOSITIVE FILM PET-100
FUJI MICROFILM NEGATIVE Super HR PET-63, PET-100, PET-125
Genus – The Microfilm Shop purchased the business of Eichner – Mikrofilm Haus and, as part of this German acquisition, acquired the rights to the Ozaphan range of Diazo duplicating products, including all formulas and naming rights. In 2016 Genus – The Microfilm Shop are proud to announce that they are now manufacturing again. All of our Diazo used to be made by Star Coating in Switzerland, under license. However now the diazo is being manufactured in the UK under the direct control of The Microfilm Shop.
We have a full range of 16mm, 35mm and 105mm diazo in both blue image and our very famous M Black image.
The M Black is Back!
What is a duplicating film?
A duplicating film is used to make copies of the original silver based camera film. These duplicate films are required for off-site storage, security, distribution etc. Duplicate film is available in the same formats as the original silver halide camera film ie. 16mm, 35mm, 105mm in roll or A6 sheets and aperture cards.
Types of duplicating film
i) Diazo Film
This is a very low cost copying medium with up to 50 years archival life. For normal commercial purposes this is the ideal economical, very hard wearing, copying medium. Diazo film is processed using ammonia gas or liquid to produce either a blue or black image from the original film.
ii) Vesicular Film
A duplicate made with vesicular film automatically reverses the image, ie. a negative original produces a positive vesicular copy. (Vesicular film is not recommended for copying positive originals) Vesicular film produces a white image on a powder blue background from the original film. Processing of this film is completed by heat alone-no ammonia is needed. It is a low cost copying medium with 10-20 years archival life.
iii) Silver Film
Silver duplicating film is available in 2 formats;-
a) Positive Print Film – to produce a duplicate that is opposite to the original (ie. negative original changed to a positive copy).
b) Direct Duplicate Print Film – where the duplicate is the same as the original (ie. a negative original produces a negative copy).
Compared with diazo and vesicular duplicating film, this is a more expensive duplicating process but has exceptional image quality and an archival life of 100 years+ when filmed and stored properly. It is an ideal archival storage medium.
The Microfilm Shop offers a complete diazo, vesicular and silver duplicating service.
Colour Striping – diazo and vesicular only.
One of the most popular formats of diazo and vesicular duplicating film is 105mm rolls or 105mm x 148mm sheets, commonly referred to as microfiche. The Microfilm Shop has the facility to convert diazo or vesicular into rolls or sheets with colour stripe, if required. The colour stripe is used to make indexing simpler by allocating subject groups a particular colour. These stripes are available in a variety of widths and colours depending on how much eye readable information is printed on the heading stripe at the top of the microfiche.
Stripe Widths Available
2mm, 4mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 17mm, 21mm, 25mm .
| A=Red B=Maple Leaf Red C=Blue D=Dark Blue E=Cambridge Blue F=Yellow G=Green H=Dark Green I=Orange |
J=Purple K=Dark Brown L=Black M=Chartreuse N=Light Blue O=Light Green P=Pink Q=Brown (Tan) R=Grey |
S=Buff T=White U=Peach V=Gold W=Lavender X=Violet Y=Cerise |
Note: The colours shown above are meant as a guide only and are not considered to be a detailed representation of the exact colours available.
105mm Rolls
These can be supplied colour striped in either ‘A’ or ‘B’ wind format depending on the set-up of your duplicating machine. Please see diagram below.
A or B wind must be specified when you order.

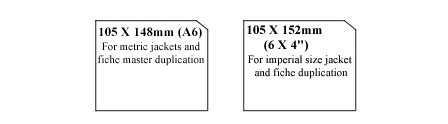

105 X 148mm Sheets(Microfiche) Standard Formats
Cut Corners
One corner of each diazo sheet is normally cut off. If the cut corner is positioned to the top right then the emulsion is on the reverse side of the material.
Chemicals
Diazo duplicating film uses ammonia to develop the film once it has been exposed. The Microfilm Shop can supply a full range of ammonia liquids and gases. Also available is absorber (DABSORBER) which is used to absorb excess ammonia during the development process thus avoiding unnecessary ammonia fumes.
Also available from The Microfilm Shop is a special transfer paper (DDODTP) which has ammonia crystals impregnated into it. By the use of a special heated roller machine the transfer paper is placed on top of an exposed, but undeveloped, microfiche and inserted into the machine. By a combination of pressure and heat, the ammonia is released from the paper and develops the microfiche. The use of this paper significantly reduces the amount of ammonia in the working environment. Contact us, for details of this special equipment as it does not appear in our equipment section.
Silver duplicate film requires developer and fixer.
Fiche Labels
Fiche labels are available in 127 x 11mm size (JLF) on sheets of computer stationery. These are ideal to place over old or incorrect existing headings.
Camera Films
What is a Camera Film?
Camera film or silver halide film, is the original film that is loaded into your camera when you are microfilming your documents and is therefore the basis of every microfilm system.
Types of Camera Film
i) 16mm film
Held on a spool, 16mm films are usually on a 2, 4 or 5mil thick base and many lengths are available to suit particular applications. The most commonly used are 30.5m (100ft) and 61m (200ft).
ii) Specialised Cartridge films
In these applications the unexposed 16mm film is pre-loaded into a cartridge. Although this makes loading film into the camera easier it usually ties you to a single supplier. In Europe Bell and Howell’s cartridge PAK film is usually Fuji and the 3M G01 film has varied between Kodak and Agfa (and back again) over the last few years. The Microfilm Shop is able to supply both types of cartridge loaded with any of the three makes of film.
iii) 35mm film
These are usually used in 30.5m (100ft) rolls for flatbed cameras or cut into frames and mounted onto aperture card/camera cards.
iv) 105mm film
105mm film is normally cut into sheets, 105mm x 148mm, for use in a variety of microfiche cameras.
v) COM film (Computer Output Microfilm)
A specialist product, which has different emulsions to the conventional films included in this section.
Types of Emulsion
Most films are available with a choice of two types of emulsion.
i) High Speed Emulsion
As a general rule these films are used in Rotary Cameras. This type of camera has an exposure time whose duration is dictated by the constant speed at which the camera physically transports the document past the film. Therefore, to ensure quick filming a high speed emulsion is needed.
ii) Medium Speed Emulsion
As a general rule these films are used in Flatbed Cameras. This type of camera usually controls the exposure time to suit the document and light source whilst the document lies on the camera bed without moving. Medium speed emulsions have a smaller grain size thereby tending to give better quality images at the expense of the speed of filming.
Film Brands
The Microfilm Shop is able to supply every make of film available i.e. Agfa, Fuji, Kodak or our very own Microfilm Shop film.
Chemistrydia 35
Once your documents have been microfilmed (photographed) onto the roll of camera film, the film will need processing using developer and fixing chemicals in a darkroom environment. This can be achieved using your own processing equipment or The Microfilm Shop offers a processing service.
The Microfilm Shop supplies a full range of developing and fixing chemicals including Agfa, Fuji, Kodak and The Microfilm Shop branded chemicals.
Both the developer and fixer can be supplied in concentrate or ready-to-use format. Also available are The Microfilm Shop mini kits which provide all the chemicals required for smaller desktop processors.
Processing Supplies
We can provide all of the consumable items required for a processing department including film handling gloves, processor leaders, control strips, test wedges, self-threaders, self-adhesive processing tape and postal return bags.
Resolution Test Charts
Resolution Test Charts can, and should be filmed onto your roll of microfilm alongside your documents. Once the film is processed the Resolution Test Charts can be viewed on the microfilm to evaluate the quality of resolution of the roll of microfilm. Resolution Test Charts are essential for high quality microfilm production. A full range of these test charts and density patches are available from The Microfilm Shop depending on your camera type.
Endorser Plates and Ink Rollers
The Microfilm Shop can provide various endorser plates and ink rollers for the following camera makes:- Banktec, Buic, Bell and Howell, Brandt, Canon, IBM, Kodak, NCR, Billcon, Maverick, Minolta and dia 37Unisys.
Densitometers
Essential for quality control checking of the density of your finished microfilms. The Microfilm Shop can provide a complete range.
